Personnel Protective Equipment
Elecsafe is a complete source of personnel protective equipments which are built to exceed International as well as Indian standards in electrical safety. Elecsafe range of products & solutions covers Electrical Hazards Safety, Arc Flash Protection & Fall Protection. These solutions are built not only to give you peace of mind protection but also fatigue free & comfortable working experience.
Products Range:

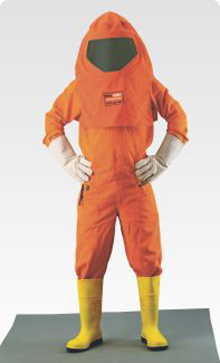

Arc Suits
Arc Suit is a specially designed protection garment used worldwide to effectively protect human life from electrical flash. They are made from special flame resistant fabric (FR) meeting IEC 61482-1 & IEC 61482-2 and tested as per ASTM 1959. They are classified as per HRC 1, HRC 2, HRC 3, HRC 4 based on the ATPV values as per NFPA 70 E.
- Inherently flame resistant FR fabric – properties retained over life span
- Lightweight fabric – Ranging from 6.5 to 9 oz/yard2 for user comfort
- Unique design – Various combinations for fatigue free operation
- Stitching thread – garments made with FR rated thread
- Various ATPV values garment starting from 5 & upto 100 cal/cm2
- Heat Attenuation factor (HAF) – more than 90% to ensure minimum exposure to heat
- For higher ATPV air ventilated design garments
Dielectric Shoes
Elecsafe dielectric shoes are completely electrically insulated footwear designed to give added protection to those who are at risk due to electrical shocks during operations. Dielectric shoes offers unique protection as compared to the usual industrial safety shoes like:
- Insulating properties for complete footwear & not just for soles
- 100% waterproof
Elecsafe range of dielectric shoes meets international standards as per EN 50321 ASTM standard F2413 05, ASTM F1116 F1117-08 & PPE ISO 20345-1 with DIR 89/686/EEC TOE CAP 200
- It is made with epoxy coated steel toe which can withstand 200 joules
- Specially designed rubber cleated out sole for maximum grip & slip resistance
- Oil Resistant vulcanized rubber sole for maximum grip, minimum wear & improved cut resistance
- Heat resistant up to 300deg Celsius for 30 sec.
- Complete boot tested at 20kV, 3 mins and 10 kV for 8hours
- Sole tested for 35 kV upto 3 minutes
- Shelf life – more than 10 years
- Shaft is made from yellow Polyflex dielectric compound having following durability features
- Lining – Washable knitted nylon (seamless)
- Insole – Moisture absorbing, machine washable

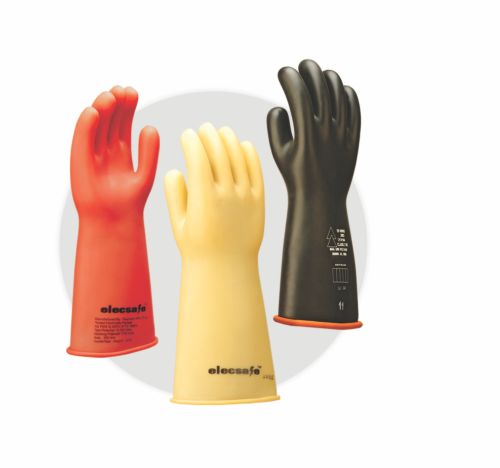

Electrical Gloves
Elecsafe gloves provide complete hand protection from electrical shock during electrical operations.
Elecsafe electrical insulating rubber gloves are made with highest quality rubber which gives unique benefits like:
- Tensile Strength ≥ 16MPa – Gives higher operating life
- Average elongation at break ≥ 600% – flexibility for different hand sizes
- Puncture resistance ≥ 18N/mm – Gives higher puncture resistance
- Tension set ≤ 15%- Non deforming
- Made from high quality synthetic latex rubber for better properties in less thickness
- Automated dipping process to control design variables
- Gloves voltage applications from 500V to 36kV
- Contoured design for less fatigue
- Elecsafe offers complete range of gloves in all classes and sizes
- Added benefit of resistance to acid, oil, ozone and very low temperature
- Conforms to Ageing Requirements and Flame Retardant properties

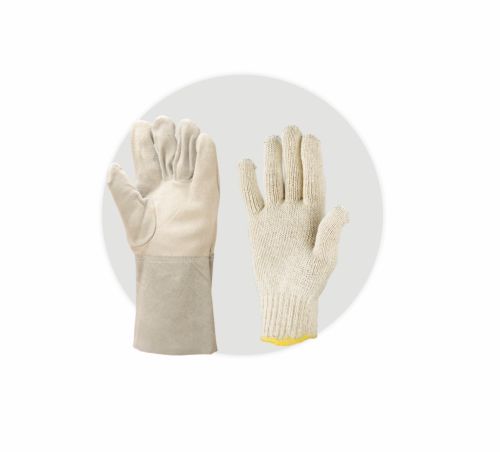

- Mechanical protection against cut, abrasion & punctures
- Manufactured with top grain cow hide leather
- Provides dual benefit of dielectrical as well as mechanical resistance
- Knitted from stretch fabric these gloves are worn to reduce discomfort due to perspiration & slippage

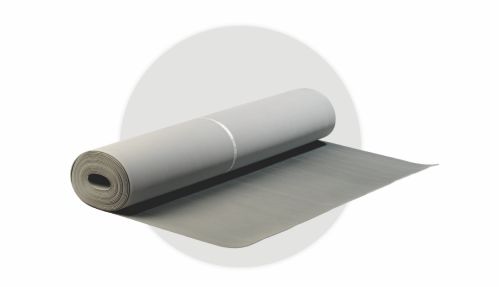

Insulating Rubber Mats
Elecsafe high voltage insulating rubber mats conforms to IEC 61111:2002 and are manufactured using high quality elastomer rubber in order to provide complete protection against electric shock due to electrical earth faults. These rubber mats are suitable for use in outdoor and indoor applications and are generally placed in front of electrical panels and switchgears in orders to create a safe working environment for the operators.
High quality EPDM formulations offers low leakage current values also giving better resilience and toughness to mats against ozone, UV and general weathering.:
- Slip resistant
- Acid and oil resistant
- Hydrophobic in nature
- Fire resistant
- Halogen free flame retardant
- Mats available for 415V to 36kV voltage applications
- Higher breakdown voltage in lesser thickness
- Thickness variation from 2-7 mm as per voltage applications
- Continuous rolls of 10m in lengths
